M-JET DIAGNOSTIC · YAMAHA
Pre-order openM-JET DIAGNOSTIC for Yamaha WaveRunner & Outboard
Diagnostics for your Yamaha WaveRunner and Yamaha outboard, right on your phone. Plug in the dongle, open the app and see what's going on: fault codes with explanations, live engine data and service functions you'd normally need a dealer for.
- Fault codes with suggested fixes
- Up to 34 live values
- Test and relearn components
- 37 WaveRunners and 114 outboards
Estimated shipping
from31 October 2026
--Days
--Hrs
--Min
--Sec
Shipping has started.
Choose licence
1 vehicle
For 1 vehicle
€249,00
3 vehicles
For up to 3 vehicles
€499,00
5 vehicles
For up to 5 vehicles
€699,00
Unlimited vehicles
Unlimited vehicles
€999,00
The licence is shown in the app and scales flexibly, from private user to workshop.
How your pre-order works
-
1
Today
Pre-order
Choose your licence and secure your device.
-
2
Right away
Confirmation
You get your order confirmation by email.
-
3
Late October
Shipping
We ship your device and email you the tracking number.
-
4
On the water
Plug in & go
Plug in the dongle, connect the app, start diagnosing.
What the app does
Find faults
The app reads the fault memory and shows each fault in plain language, along with what might be causing it and what to check next.
- Fault codes (DTC) with a clear description
- Likely cause plus concrete check and repair steps
- Clear the fault memory once you're done
Live data
Up to 34 values per model, live at the dock or out on the water.
- RPM, speed, engine and water temperature
- Intake pressure and temperature, battery voltage
- Ignition timing, injection time, throttle/APS, O₂ sensors, steering angle and more
- Switches and relays with ON/OFF status
- Record test rides and look through them later
Test components
Trigger individual components straight from the app to check whether they work. Which tests are available depends on the model.
- Ignition coils one by one
- Injectors one by one
- Fuel pump
- Bypass/stepper motor and YPVS

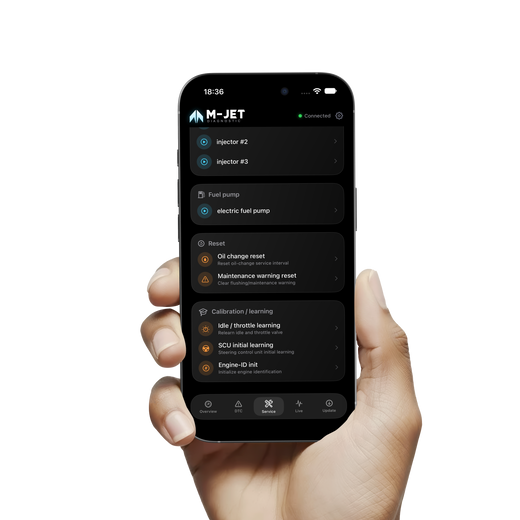

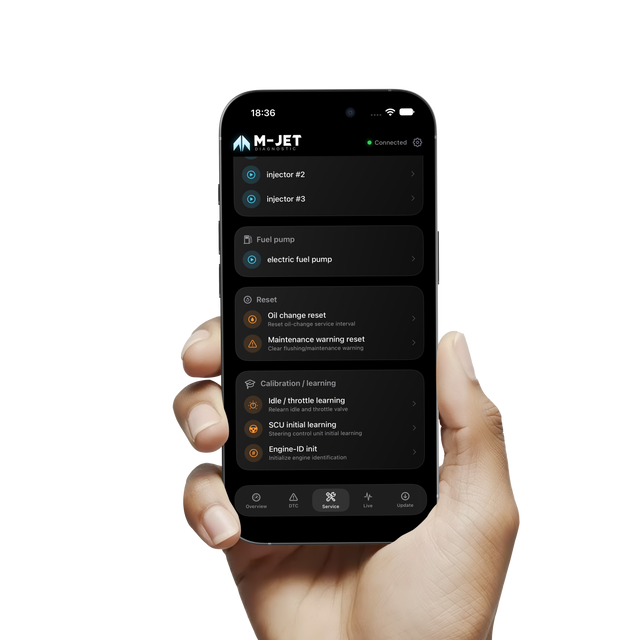

Relearn after a repair
After swapping parts, the ECU often needs to relearn. You can do that yourself now (depending on the model).
- Idle and throttle body learning
- SCU initial learning for the steering unit (RiDE)
Service and engine hours
Reset the service reminder and see how many hours the engine has done. Handy when buying used, too.
- Reset the oil change interval
- Reset maintenance and flush warnings
- Total engine hours
- Hours per RPM band (up to 12,000 rpm)
Depending on the model.
Vehicle info
See exactly what's fitted at a glance.
- Model and engine serial number
- SCC code and ECM part number
- ECU software version
FAQ
When will my device arrive?
We ship all pre-orders on the shipping date shown above. As soon as your parcel is on its way, we'll email you the tracking number.
When do I pay?
When you order. That way your device is firmly reserved for you.
My model isn't listed. What now?
Send us your model and model year via live chat and we'll check whether it works anyway.
Do I need a laptop?
No. All you need is your phone with the app for iOS or Android. The dongle connects via Bluetooth.
Which languages does the app support?
German, English, Spanish, French, Italian and Portuguese.
Diagnostics. Without a laptop.
Plug in the dongle, open the app, done. For your Yamaha WaveRunner and outboard.
Pre-order nowAll compatible Yamaha WaveRunners
These are the WaveRunners M-JET DIAGNOSTIC works with, including model year and engine.
- 37Models
- 6Series
- 2002+Model years
| Model | Model year | Engine |
|---|---|---|
| FXSeries14 models | ||
| Yamaha FX140 | 2002–2008 | 998 / 1052 cm³ |
| Yamaha FX Cruiser | 2002–2008 | 998 / 1052 cm³ |
| Yamaha FX HO | 2002–2008 | 1052 cm³ |
| Yamaha FX Cruiser HO | 2002–2008 | 1052 cm³ |
| Yamaha FX HO | 2011–2023 | 1812 cm³ |
| Yamaha FX Cruiser HO | 2011–2023 | 1812 cm³ |
| Yamaha FX SVHO | 2011–2023 | 1812 cm³ |
| Yamaha FX Cruiser SVHO | 2011–2023 | 1812 cm³ |
| Yamaha FX Limited SVHO | 2011–2023 | 1812 cm³ |
| Yamaha FX HO | from 2024 | 1898 cm³ |
| Yamaha FX Cruiser HO | from 2024 | 1898 cm³ |
| Yamaha FX SVHO | from 2024 | 1898 cm³ |
| Yamaha FX Cruiser SVHO | from 2024 | 1898 cm³ |
| Yamaha FX Limited SVHO | from 2024 | 1898 cm³ |
| VXSeries10 models | ||
| Yamaha VX | from 2015 | 1049 cm³TR-1 |
| Yamaha VX Deluxe | from 2015 | 1049 cm³TR-1 |
| Yamaha VX Cruiser | from 2015 | 1049 cm³TR-1 |
| Yamaha VX Limited | from 2015 | 1049 cm³TR-1 |
| Yamaha VX Sport | 2005–2014 | 1052 cm³MR-1 |
| Yamaha VX Deluxe (MR-1) | 2005–2014 | 1052 cm³MR-1 |
| Yamaha VX Cruiser (MR-1) | 2005–2014 | 1052 cm³MR-1 |
| Yamaha VXR | 2011–2014 | 1812 cm³ |
| Yamaha VXS | 2011–2014 | 1812 cm³ |
| Yamaha VX Cruiser HO | from 2024 | 1898 cm³ |
| GPSeries5 models | ||
| Yamaha GP1300R | 2003–2008 | 1298 cm³ |
| Yamaha GP1800R HO | 2017–2023 | 1812 cm³ |
| Yamaha GP1800R SVHO | 2017–2023 | 1812 cm³ |
| Yamaha GP HO | from 2024 | 1898 cm³ |
| Yamaha GP1800R SVHO (1.9 L) | from 2024 | 1898 cm³ |
| EXSeries4 models | ||
| Yamaha EX | from 2017 | 1049 cm³TR-1 |
| Yamaha EX Sport | from 2017 | 1049 cm³TR-1 |
| Yamaha EX Deluxe | from 2017 | 1049 cm³TR-1 |
| Yamaha EX Limited | from 2017 | 1049 cm³TR-1 |
| FZSeries2 models | ||
| Yamaha FZR | 2009–2016 | 1812 cm³ |
| Yamaha FZS | 2009–2016 | 1812 cm³ |
| SuperJet / JetBlaster2 models | ||
| Yamaha JetBlaster | from 2022 | 1049 cm³TR-1 |
| Yamaha SuperJet | from 2021 | 1049 cm³TR-1 |
No match. Send us your model via live chat and we'll check it for you.
Your model isn't listed? Send us a message via live chat.
All compatible Yamaha outboards
These are the Yamaha outboards M-JET DIAGNOSTIC recognises. Which functions your engine offers depends on the model and the control unit.
- 114Models
- 5Power classes
- 2003+ECU generations
| Model | Former name | Type | ECM | ECU gen. |
|---|---|---|---|---|
| Yamaha F20 to F100 21 models | ||||
| Yamaha F20G | 6HY-00 to 09 | 6HY | from 2013 | |
| Yamaha F20G | 6HY-10 | 6HY | from 2013 | |
| Yamaha F25G | F25C | 6FM-00 | 6FM | from 2013 |
| Yamaha F30B | F30A | 6BT-00 | 6BT | from 2008 |
| Yamaha F40F | F40A | 6BG-00 | 6BG | from 2008 |
| Yamaha F50F, F50H | F50B | 6C1-00 | 6C1 | from 2009 |
| Yamaha F60C, F60F | F60B | 6C5-00 | 6C5 | from 2009 |
| Yamaha F70A | F70A | 6CJ-00 | 6CJ | from 2009 |
| Yamaha F75B | F75A | 6D6-00 | 6D6 | from 2009 |
| Yamaha F75C | 6BC-00 | 6BC | from 2009 | |
| Yamaha F75D, F80D | F75B | 6HV-00 | 6HV | from 2013 |
| Yamaha F75F | 6JX-00 | 6JX | from 2013 | |
| Yamaha F80B | 6D6-00 | 6D6 | from 2009 | |
| Yamaha F80B, F80C | 6D7-00 | 6D7 | from 2009 | |
| Yamaha F90B | F90A | 6D8-00 | 6D8 | from 2009 |
| Yamaha F90C | 6FP-00 | 6FP | from 2013 | |
| Yamaha F90C | F90B | 6HJ-00 | 6HJ | from 2013 |
| Yamaha F90D | VF90A | 6HK-00 | 6HK | from 2013 |
| Yamaha F100D | 6D9-00 | 6D9 | from 2009 | |
| Yamaha F100F | 6HJ-00 | 6HJ | from 2013 | |
| Yamaha F100G | 6JY-00 | 6JY | from 2013 | |
| Yamaha F115 to F150 16 models | ||||
| Yamaha F(L)115A | (L)F115A | 68V-00 | 68V | from 2009 |
| Yamaha F(L)115B | (L)F115B | 6EK-00 to 11 | 6EK | from 2009 |
| Yamaha F(L)115B | (L)F115B | 6EK-20 | 6EK | from 2013 |
| Yamaha F115C | VF115A | 6FN-00 | 6FN | from 2013 |
| Yamaha F125A | 6FN-00 | 6HN | from 2013 | |
| Yamaha F130A | F130A | 6EM-00 to 09 | 6EM | from 2013 |
| Yamaha F(L)130A | F130A | 6EM-10 | 6EM | from 2018 |
| Yamaha F(L)150A/D | (L)F150A/B | 63P-00 | 63P | from 2003 |
| Yamaha F(L)150B/F | 6BM-00 | 6BM | from 2003 | |
| Yamaha F150C | VF150A | 6EH-00 to 02 | 6EH | from 2012 |
| Yamaha F150C | VF150A | 6EH-10 | 6EH | from 2016 |
| Yamaha F(L)150G | (L)F150CA | 6HP-00 | 6HP | from 2016 |
| Yamaha F(L)150H | (L)F150LSA/XSA | 6LM-00 | 6LM | from 2021 |
| Yamaha F(L)150J | (L)F150LCB/XCB | 6LM-00 | 6LM | from 2021 |
| Yamaha F(L)150L | (L)F150LC/XC | 6MA-00 | 6MA | from 2022 |
| Yamaha F150P | 6NB-00 | 6NB | from 2024 | |
| Yamaha F175 to F250 59 models | ||||
| Yamaha F175A | F175A | 6FA-00 to 01 | 6FA | from 2012 |
| Yamaha F175A | F175A | 6FA-20 | 6FA | from 2016 |
| Yamaha F175B | VF175B | 6FH-00 | 6FH | from 2012 |
| Yamaha F175B | VF175B | 6FH-10 | 6FH | from 2016 |
| Yamaha F(L)175C | (L)F175CA | 6HS-00 | 6HS | from 2016 |
| Yamaha F(L)175D | (L)F175XSA | 6LK-00 | 6LK | from 2021 |
| Yamaha F(L)175F | (L)F175XCB | 6LK-00 | 6LK | from 2021 |
| Yamaha F175G | F175LB/XB | 6LY-00 | 6LY | from 2016 |
| Yamaha F(L)200A | 60L-00 | 60L | from 2003 | |
| Yamaha F(L)200A | 69J-00 | 69J | from 2003 | |
| Yamaha F(L)200B | 6S1-00 to 11 | 6S1 | from 2003 | |
| Yamaha F(L)200B | 6S1-20 to 31 | 6S1 | from 2004 | |
| Yamaha F(L)200B | 6S1-40 | 6S1 | from 2018 | |
| Yamaha F(L)200C | (L)F200A | 6AL-00 to 24 | 6AL | from 2004 |
| Yamaha F(L)200C | (L)F200A | 6AL-30 | 6AL | from 2018 |
| Yamaha F200D | VF200A | 6CD-00 | 6CD | from 2009 |
| Yamaha F(L)200F | (L)F200B | 6DA-00 to 02 | 6DA | from 2012 |
| Yamaha F(L)200F | (L)F200B | 6DA-10 | 6DA | from 2016 |
| Yamaha F(L)200G | (L)F200CA | 6DV-00 to 01 | 6DV | from 2012 |
| Yamaha F(L)200G | (L)F200CA | 6DV-10 | 6DV | from 2014 |
| Yamaha F(L)200G | (L)F200CA | 6DV-20 | 6DV | from 2016 |
| Yamaha F200H | VF200XA | 6JV-00 | 6JV | from 2009 |
| Yamaha F200J | VF200LB | 6KY-00 | 6KY | from 2020 |
| Yamaha F200L | VF200XB | 6LG-00 | 6LG | from 2020 |
| Yamaha F(L)200N | (L)F200LSA/XSA | 6LH-00 | 6LH | from 2021 |
| Yamaha F(L)200P | (L)F200LCB/XCB | 6LH-00 | 6LH | from 2021 |
| Yamaha F(L)200Q | (L)F200LC/XC | 6LW-00 | 6LW | from 2016 |
| Yamaha F200R | 6NC-00 | 6NC | from 2024 | |
| Yamaha F(L)200S | 6NP-00 | 6NM | from 2019 | |
| Yamaha F(L)200T | 6NS-00 | 6NS | from 2025 | |
| Yamaha F(L)225A | 69J-00 | 69J | from 2003 | |
| Yamaha F(L)225A | 60L-00 | 60L | from 2003 | |
| Yamaha F(L)225B | (L)F225A | 6AS-00 to 24 | 6AS | from 2004 |
| Yamaha F(L)225B | (L)F225A | 6AS-30 | 6AS | from 2018 |
| Yamaha F225C | 6BB-00 to 02 | 6BB | from 2004 | |
| Yamaha F225D | VF225A | 6CC-00 | 6CC | from 2009 |
| Yamaha F(L)225F | (L)F225CA | 6CL-00 to 14 | 6CL | from 2007 |
| Yamaha F(L)225F | (L)F225CA | 6CL-20 | 6CL | from 2014 |
| Yamaha F(L)225H | (L)F225B | 6HB-00 | 6HB | from 2009 |
| Yamaha F(L)225J | (L)F225XCB/NCB | 6KK-00/10 | 6KK | from 2019 |
| Yamaha F(L)225J | (L)F225XCB/NCB | 6KK-01/11 | 6KK | from 2019 |
| Yamaha F225L | VF225LB | 6KX-00 | 6KX | from 2020 |
| Yamaha F(L)235A | 6NM-00 | 6NM | from 2019 | |
| Yamaha F(L)250A | (L)F250A | 6P2-00 | 6P2 | from 2004 |
| Yamaha F(L)250B | 6BR-00 | 6BR | from 2007 | |
| Yamaha F250C | VF250A | 6CB-00 | 6CB | from 2009 |
| Yamaha F(L)250D | (L)F250CA | 6CG-00 to 14 | 6CG | from 2007 |
| Yamaha F(L)250D | (L)F250CA | 6CG-20 | 6CG | from 2014 |
| Yamaha F(L)250G/H | 6DX-00 | 6DX | from 2004 | |
| Yamaha F(L)250H | 6FJ-00 | 6FJ | from 2018 | |
| Yamaha F250J | VF250XA | 6FR-00 | 6FR | from 2009 |
| Yamaha F(L)250L | (L)F250B | 6HD-00 | 6HD | from 2009 |
| Yamaha F(L)250N | F250XSB/NSB | 6KD-00/10 | 6KD | from 2019 |
| Yamaha F(L)250N | F250XSB/NSB | 6KD-01/11 | 6KD | from 2019 |
| Yamaha F(L)250P | F250XCB/NCB | 6KD-00/10 | 6KD | from 2019 |
| Yamaha F(L)250P | F250XCB/NCB | 6KD-01/11 | 6KD | from 2019 |
| Yamaha F250Q | VF250LB | 6KW-00 | 6KW | from 2020 |
| Yamaha F250R | VF250XB | 6LF-00 | 6LF | from 2020 |
| Yamaha F(L)250S | 6NM-00 | 6NM | from 2019 | |
| Yamaha F275 to F450 17 models | ||||
| Yamaha F275B | 6KW-00 | 6KW | from 2020 | |
| Yamaha F(L)300B | (L)F300CA | 6CE-00 to 04 | 6CE | from 2007 |
| Yamaha F(L)300B | (L)F300CA | 6CE-10 | 6CE | from 2014 |
| Yamaha F(L)300C | (L)F300A | 6JA-00 | 6JA | from 2009 |
| Yamaha F(L)300D | (L)F300A | 6JD-00 | 6JD | from 2014 |
| Yamaha F(L)300F | F300XSB/NSB/USB | 6KA-00 | 6KA | from 2019 |
| Yamaha F(L)300F | F300XSB/NSB/USB | 6KA-01 | 6KA | from 2019 |
| Yamaha F(L)300G | F300XCB/NCB/UCB | 6KA-00 | 6KA | from 2019 |
| Yamaha F(L)300G | F300XCB/NCB/UCB | 6KA-01 | 6KA | from 2019 |
| Yamaha F(L)350A | (L)F350CA/CB | 6AW-02 to 12 | 6AW | from 2007 |
| Yamaha F(L)350A | (L)F350CA/CB | 6AW-21 to 31 | 6AW | from 2009 |
| Yamaha F(L)350A | (L)F350CA/CB | 6AW-51 | 6AW | from 2014 |
| Yamaha F(L)350B | (L)F300XSA/USA/NSA | 6ML-00 | 6ML | from 2019 |
| Yamaha F(L)375A | XF375NSA | 6GT-00 | 6GT | from 2016 |
| Yamaha F(L)400A | XF400NSA | 6LB-00 | 6LB | from 2020 |
| Yamaha F(L)425A | XF425NSA | 6GR-00 | 6GR | from 2016 |
| Yamaha F(L)450A | XF450XSA | 6KN-00 | 6KN | from 2020 |
| Yamaha HPDI Z series 1 model | ||||
| Yamaha (L)Z150P, Z150Q, Z175G, Z175H, (L)Z200N, Z200P | HPDI 2.6 | 68F | from 2003 | |
No match. Send us your outboard via live chat and we'll check it for you.
